The Evolution of Architectural Patterns in Back-End Development: From MVC to Microservices
Contents
An architectural pattern is the foundation of any large-scale software project, and the choice of pattern significantly impacts how successfully a back-end system can evolve and be maintained. For a long time, the traditional MVC (Model-View-Controller) pattern was considered the go-to approach for building web applications.
Modern MVC implementations often incorporate advanced concepts like dependency injection (DI) and inversion of control (IoC), making it possible to extend and scale the architecture far beyond its original simplicity. However, even these more complex MVC structures come with limitations – especially when it comes to scalability and maintaining increasingly complex business logic.
Despite the capabilities of today’s MVC frameworks, many teams still rely on basic, unextended MVC.
In this article, we’ll take a closer look at how back-end architectural patterns have evolved – from the classic MVC model, commonly used in early-stage projects, to more advanced approaches like SOA (Service-Oriented Architecture), DDD (Domain-Driven Design), Modular Monoliths, and ultimately, Microservices.
Our goal is to highlight how transitioning between architectures can address real-world issues around maintenance, testability, and scalability, and to offer guidance on choosing the right architecture based on your project’s specific needs.

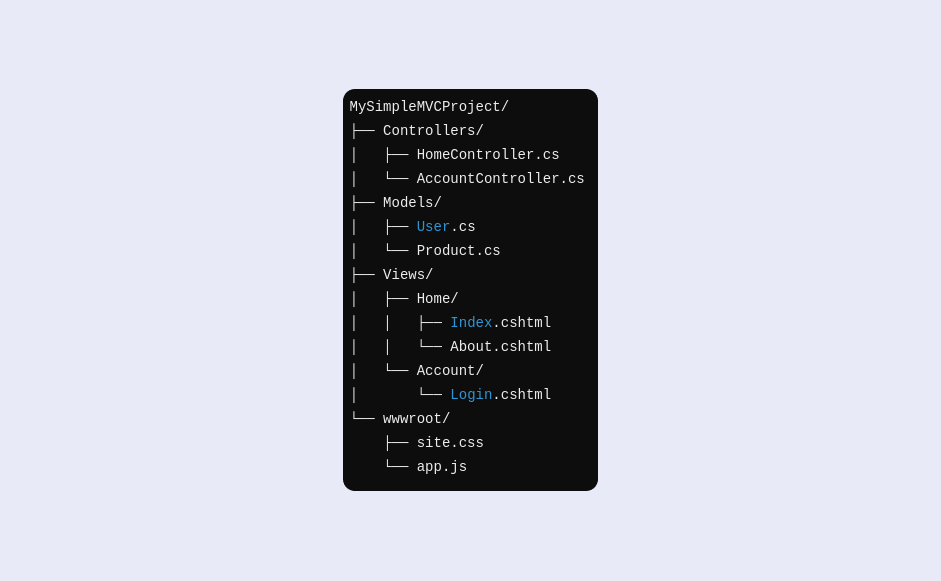

Challenges of Traditional MVC

The main advantages of MVC are fast development and a low entry barrier. It’s a straightforward and intuitive architectural pattern that developers can quickly learn and implement. Additional time costs are caused by the distribution of business logic across controllers, project growth, testing difficulties, and duplication of logic.
The primary issues arise from the scattering of business logic across controllers, project growth, testing difficulties, and code duplication. This problem becomes especially apparent when there are no modular tests, or when parts of the code base cannot be reused in different parts of the application.

In large-scale projects, this typically results in a set of large controllers, where business logic is either not reused at all or offloaded into static utility functions or domain models. This approach often leads to developer frustration, as modifying any part of the system can trigger unforeseen consequences.

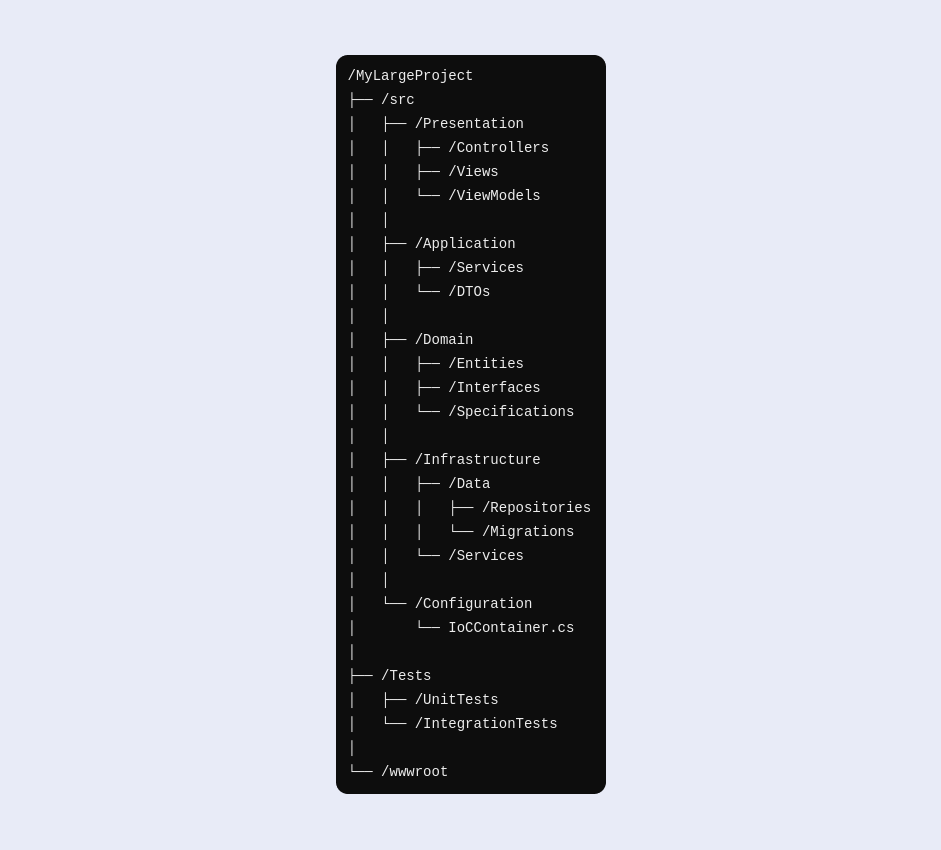

Today’s MVC frameworks offer modern capabilities that mitigate many of these issues:
- IoC and DI integration – frameworks like ASP.NET MVC, Laravel, and Spring MVC come with built-in dependency injection containers, increasing modularity and simplifying testing;
- Clear separation between views and controllers – using ViewModels, templating systems, and dedicated service layer helps structure communication between layers more cleanly;
- Extensibility through additional layers – when it’s necessary, MVC can be augmented with separate layers for business logic, domain modeling, and infrastructure, resulting in a more flexible and scalable architecture.
However, despite these improvements, there are still some limitations:
- Scattered business logic – even with service layers and repository patterns in place, logic often ends up split between controllers, models, and other components, making long-term maintenance more difficult;
- Scaling challenges – as the project grows, managing dependencies and introducing new features can lead to tangled codebases, requiring frequent refactoring to stay manageable;
- Testing limitations – although DI helps, tight coupling between layers sometimes results in a reliance only on integration testing, rather than clean unit tests.
Now that we’ve identified the core issues, let’s walk through how project architecture typically evolves. We'll explore when a shift to a different pattern may become necessary, whether it’s possible to anticipate that transition, and how to proactively prepare for it.
Stages of Architectural Evolution
As a project grows, it accumulates new features, more data, and an increasing number of users. To keep the system from becoming overly complex or difficult to maintain, its architecture needs to evolve accordingly.
Let’s say we start a project using the previously discussed MVC pattern and successfully launch an MVP. As the product gains traction, the client decides to continue development. Over time, we begin to encounter growing pain – maintaining and updating both existing and new business logic becomes increasingly challenging. At this stage, it often makes sense to consider switching to a more robust architectural approach in order to speed up development and reduce bugs.
Below are some architectural models that, in my experience, are well-suited for fast-scaling products.

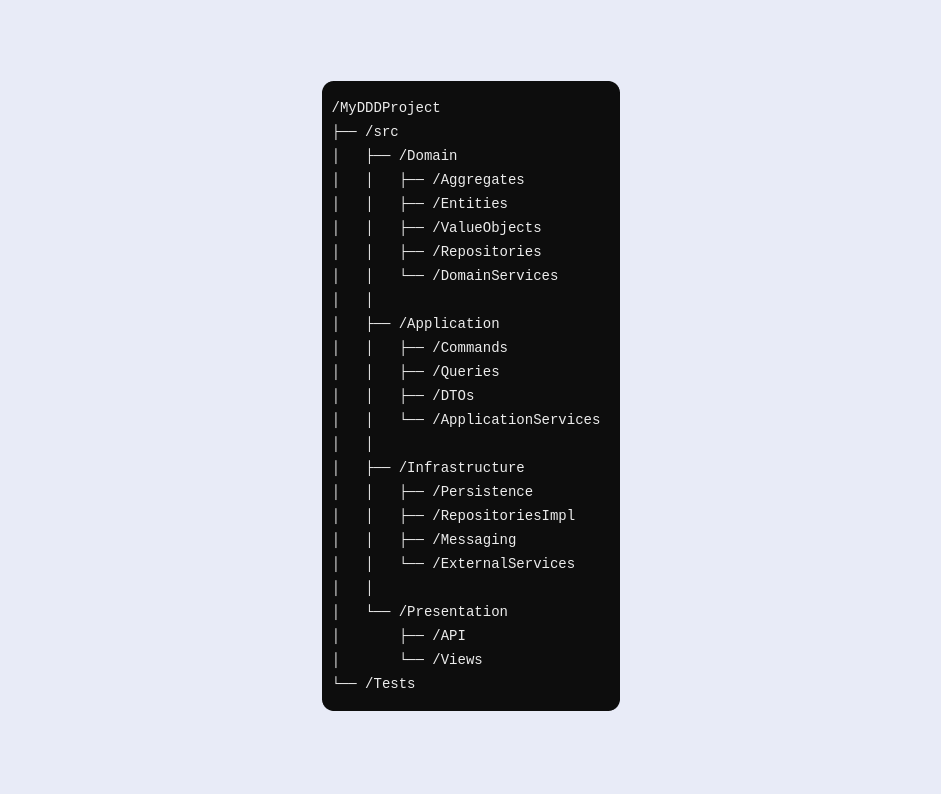

Adopting Domain-Driven Design (DDD)

Domain-Driven Design focuses on a deep understanding of the business domain. The core idea behind DDD is to build a rich domain model and leverage concepts like bounded contexts, aggregates, entities, and value objects to organize and encapsulate business logic. While DDD helps structure internal application logic, it doesn’t prescribe specific deployment strategies or component interaction models.
Key benefits and characteristics of transitioning to DDD include:
- Reduced complexity through a clearly and explicitly described domain layer. Each domain has a specific responsibility, and its interactions are confined within defined Bounded Contexts;
- Easier integration of new features if domain layer are properly structured – new logic naturally fits into existing domain boundaries;
- Changes require deep domain understanding, encouraging developers to model real business processes rather than just code for functionality;
- Minimized risk of chaotic logic – when built around DDD principles, the system can absorb changes in a consistent and predictable way;
- Feature expansion happens naturally, either by creating new domains or extending existing ones within their context.

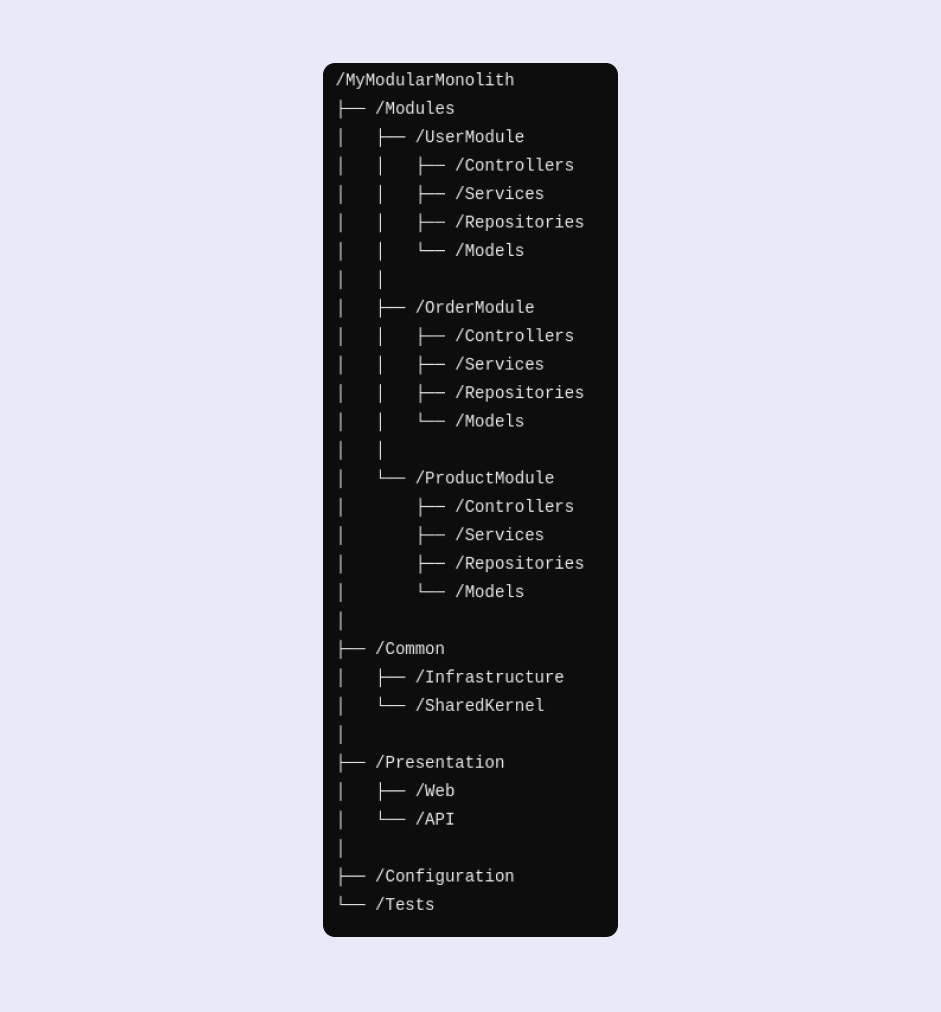

Transitioning to a Modular Monolith

The Modular Monolith architectural approach defines clear boundaries and dependencies between modules while keeping the application as a single deployable unit. It offers many of the benefits of modularity—such as improved maintainability, testability, and scalability at the development level—without introducing the complexity of a fully distributed system.
Key advantages and characteristics of adopting a Modular Monolith include:
- Reduced complexity through separation into well-defined modules with clear interfaces, each of which can be developed and tested independently;
- Lower risk of regression– when modules are properly isolated, changes made to one area are less likely to unintentionally break others;
- A natural path to microservices – a well-structured module can eventually be extracted into an independent service with minimal effort;
- Safe refactoring and updates – while modifications may require tests across modules, a clean modular structure minimizes risk;
- Simplified code maintenance thanks to clearly separated concerns and encapsulated logic within each module.
Choosing the Right Approach
Ultimately, the choice of architectural approach depends on the specifics of the project, the team, and how comfortable they are with concepts like DDD. However, the comparison table below outlines key differences based on several aspects:
As the project evolves, contextual models or modules tend to grow in complexity or become increasingly independent. At some point, these components may even require different runtime environments or programming languages. That’s when microservices or SOA (Service-Oriented Architecture) come into play.
Moving to Microservices and SOA

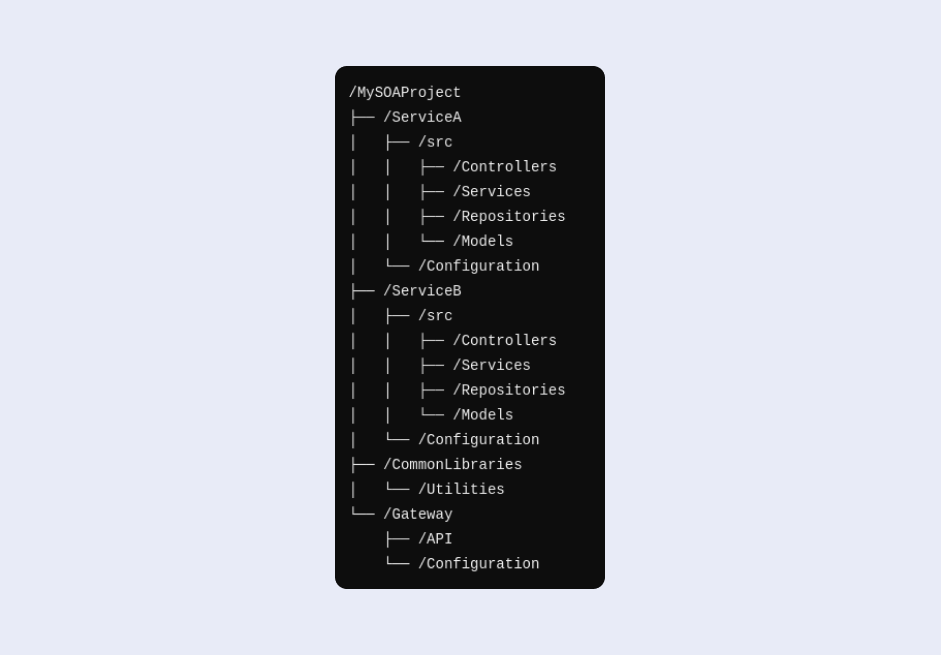

SOA

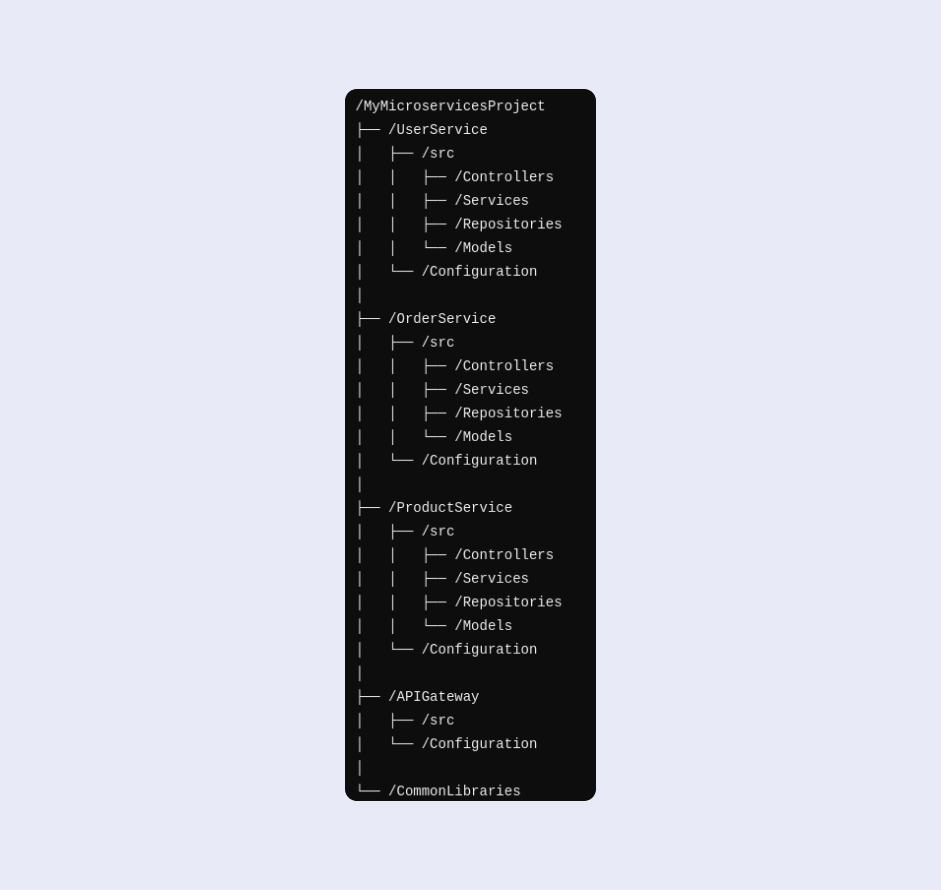

Microservices
The main advantage of this approach is the ability to split the application into independent services, each responsible for a specific task – such as email notifications or payment processing. This enables high flexibility, scalability, and independent deployment of individual components.
However, this approach requires a well-thought-out infrastructure for orchestration, monitoring, and inter-service communication.

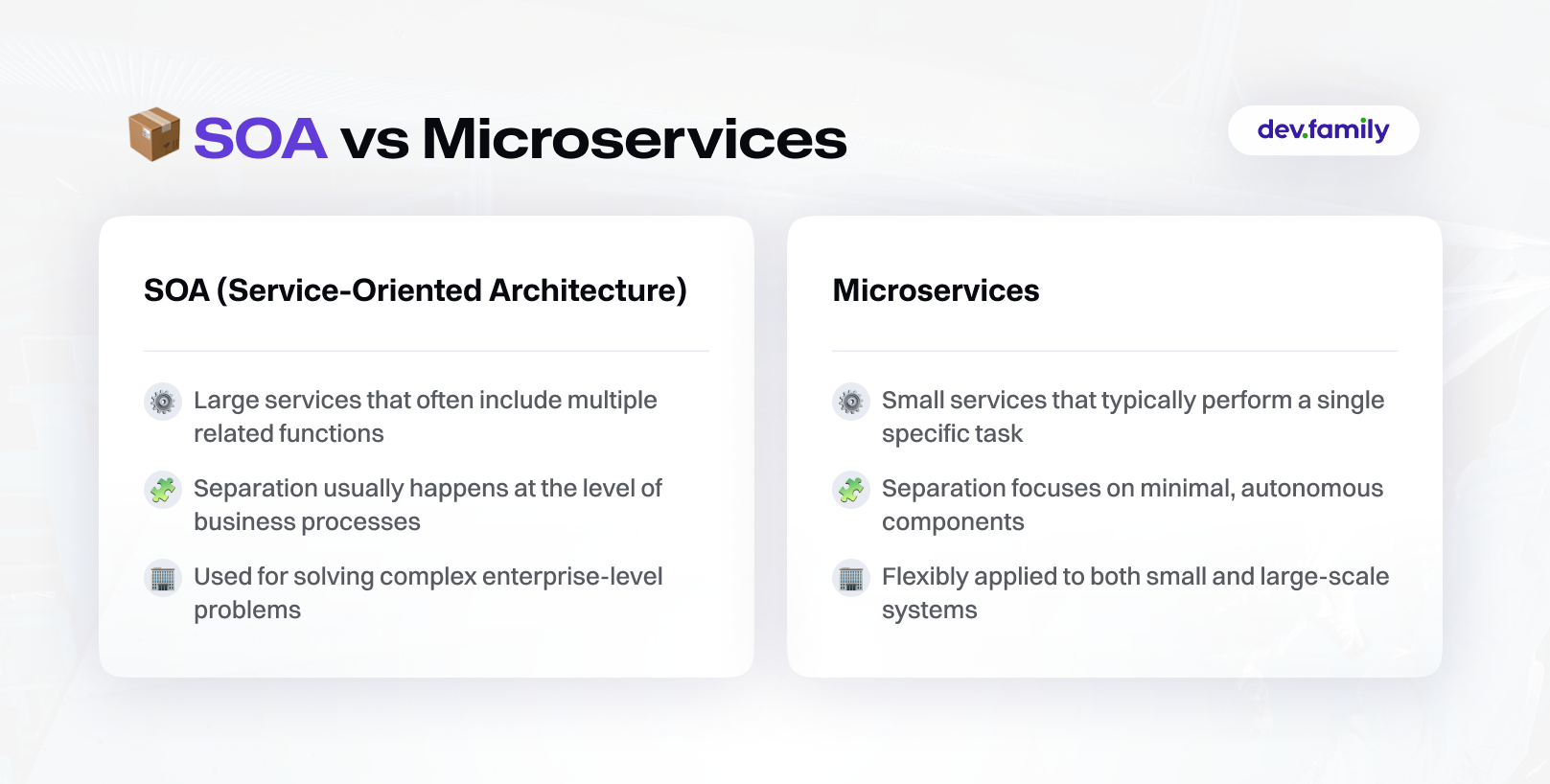

While SOA and Microservices aim for the same goal – decomposition of systems into separate components – they differ in scale, implementation style, and operational complexity.

Transitioning to a microservices or SOA-based system allows each component to be tailored to a specific task independently of the rest of the system. For instance, a dedicated data processing service can be optimized for handling high-throughput workloads, while an analytics service might run sophisticated algorithms.
Because components operate autonomously, changes to one service don’t disrupt the whole system. In contrast, modular monoliths and DDD often rely on conceptual boundaries (like Bounded Contexts), and changes in one module can still affect others.
Another key benefit is technology flexibility. You can use Python for data processing, Go for high-performance services, and Node.js for rapid prototyping – all within the same system.
Workloads in real-world systems are rarely uniform. The ability to scale individual services helps manage resources more effectively and can significantly reduce infrastructure costs.
And here are all the transitioning benefits:
Both approaches have their strengths, and the choice between them should be driven by your system’s specific needs. Here's an additional comparison between SOA and Microservices:
Own experience and project examples
From my own experience, I’ve worked on two major projects where architectural issues and technical debt forced teams to rethink their systems. Both have decided to move to a different architecture. But the path wasn’t easy.
Case 1: Migrating to a Modern MVC Structure
This was a medium sized project where the architecture transition took about three months and was handled by only two developers. The main task was a full refactor to align the codebase with a modern MVC structure and upgrade the framework from Laravel 5.8 to Laravel 8.0.
Before the migration, the application used a classic setup: a REST API with logic embedded directly in models, and overloaded controllers handling routing and business logic. Reusability attempts were limited to helper functions, which eventually led to tight coupling.
Key challenges during the transition:
- Bug spikes after redistributing logic due to changes in architectural principles;
- Pressure from the business for fast delivery, making iteration and debugging more difficult;
- Separating concerns into services and layers to reduce coupling and achieve atomicity logic.
The most difficult part was splitting business logic. Over the years, various teams contributed to the codebase, resulting in duplicated logic and inconsistencies. Business logic existed at every level – from middleware to models – making refactoring extremely complex. As we progressed, new edge cases emerged that required expanding or modifying existing solutions, triggering cascades of service rewrites and test updates. Some services grew to 1,000-2,000 lines of code and had to be split, which impacted dependencies and revealed issues with recursive DI chains.
Despite these difficulties, the migration brought significant benefits: cleaner architecture, improved test coverage, and easier maintenance accelerated feature development. Overall development speed increased by approximately 25%, and the bug rate dropped by 30%, validating the value of the refactor.
Case 2: A Journey Through Compromise
This project had over 450 controllers but only 90 services – a sign of inconsistent architecture caused by multiple large teams working with different standards. As a result, it was nearly impossible to trace where business logic existed.
The project suffered from frequent bugs, low maintainability, poor scalability, and optimization bottlenecks. Despite the clear need for change, aligning over 100 developers across more than five teams (plus separate groups of managers, analysts, architects, DevOps, etc.) was a massive challenge. It took over six months just to move from idea to action. As usual, the business was reluctant to allocate resources for addressing technical debt.
Instead of a full microservices rewrite, a compromise was reached: each team would begin migrating their components to microservices. The legacy monolith remained operational, with integrations to new services handled through databases, Redis, Prometheus, and dedicated microservice APIs.
The DevOps team faced a steep learning curve, particularly around service orchestration in Go, which was new to them. To minimize risk, low-traffic components were migrated first.
Key challenges in this case:
- Learning and adaptation – Go was unfamiliar to the team. A lead engineer was hired, and internal upskilling programs were launched, but inexperience led to data inconsistencies, system crashes, and even revenue losses;
- Bottlenecks – high-load areas exposed critical failure points requiring urgent fixes;
- Team stress – constant bugs, unstable infrastructure, and a flood of problems led to a sense of looming failure.
After a painful stabilization phase – including bug fixes and bottleneck optimizations – the situation began to improve. The architecture became more transparent, development accelerated, and testing helped catch issues early. Teams gained autonomy, scalability increased, and API standardization brought clarity and independence.
✍ Key takeaway. Migrating to a new architecture is always challenging – for developers, managers, DevOps, and product owners alike. But the payoff is real: autonomous teams, resilient services, and a more flexible system benefit both engineering and the business.
How to Choose the Right Architecture Pattern
When selecting an architectural pattern, consider the following criteria:
- Testability – the architecture should support unit and integration testing across functional blocks;
- Readability & Maintainability – a well-structured codebase makes changes easier and reduces the likelihood of bugs;
- Logic Reusability – dividing functionality into atomic components prevents duplication and accelerates new feature development;
- Flexibility & Scalability – The system must be adaptable to evolving project requirements, allowing incremental enhancements.
Based on the architectural models discussed, here’s a breakdown to help guide your decision:
- Purpose and scope of use differ between the approaches – DDD focuses on modeling business logic, while SOA and Modular Monolith are aimed at structuring the application from the perspective of deployment and dependency management;
- Deployment – SOA is built around independently deployable services. In contrast, a Modular Monolith is deployed as a single application, even though it has a well-defined internal modular structure. DDD, on the other hand, does not prescribe a specific deployment strategy;
- Communication SOA happens over the network – typically via REST or SOAP – which introduces concerns like latency, reliability, and security. A Modular Monolith avoids these issues since modules interact with each other directly within the same process;
- When it comes to managing complexity, DDD helps by clearly separating domain logic into bounded contexts, making business logic easier to reason about. SOA and Modular Monolith, however, manage complexity through technical separation and deployment boundaries.
While all three approaches aim to split a system into logical components, they each serve a different purpose: DDD is about domain modeling, SOA is about building distributed systems, and Modular Monolith is about maintaining a modular yet unified application structure.
It's important to remember that choosing an architectural pattern depends on the specifics of the project, the available budget, and the client’s long-term goals. In some cases, it makes sense to start with a simpler architecture – like MVC – and gradually move toward DDD as the project grows and the business logic becomes more complex.
Conclusion
Modern MVC implementations using IoC and DI are powerful and well-suited for small to mid-sized projects. However, as systems grow and business logic becomes more complex, challenges arise around scalability, code fragmentation, and maintainability.
Alternative architectures – such as SOA, DDD, Modular Monolith, and Microservices – offer clear boundaries, component isolation, and development flexibility, making them better suited for large and fast-evolving products.
When choosing your architecture, weigh the specifics of your project: testability, scalability, long-term maintainability, and business goals. There’s no one-size-fits-all, and sometimes it makes sense to start with a simpler MVC model and evolve to DDD or microservices as the product matures.
In the next article I’ll dive into real-world use cases for each architectural pattern and compare them in practice.
Here was dev.family!
